FB33 flood protection door barrierPresray’s FB33 is a unique, adjustable flood protection door barrier that provides effective flood protection up to 48" in height for almost any door or other opening.

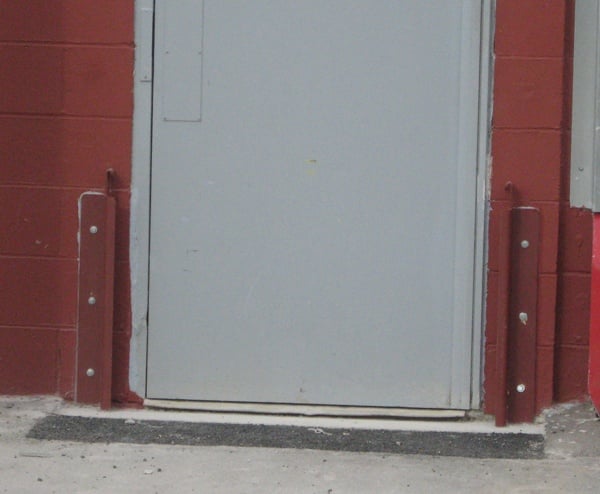

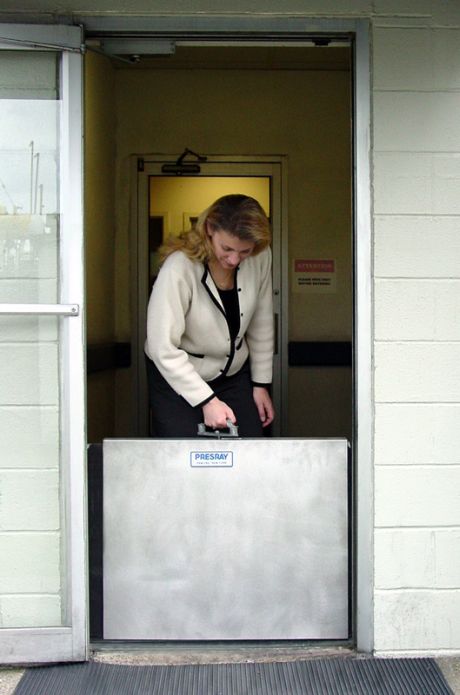

Simply set the FB33 panel between pre-installed brackets, turn the handle to expand the sides of the panel, hand tighten the compression clips to create a seal against the floor surface, and walk away. It’s that easy.

The FB33 features a patented design that keeps the water out, yet is lightweight and is easily deployed by one person.

A single three-foot-wide FB33 can take the place of 60 sandbags and weighs about the same as one. And, unlike sandbags, it’s fast and easy to deploy.

APPLICATIONS — THE FB33 AT WORK

The FB33 modular flood protection door barrier is perfect for doorways, loading docks, garage doors or any other openings in municipal, industrial or commercial facilities. The FB33 has also been popular for retail stores and strip malls, as, well as apartments and condominiums. If your building is seaside, or in a location prone to flooding, the FB33 may be the perfect solution.

BF33 flood protection door barrier diagram

FB33 Product Specifications

Size

Custom built to the width of the opening

Panel Frame

Carbon Steel mechanical tubing

Frame Envelope

Durable Neoprene

Mounting Brackets

ASTM A569 Carbon Steel (Stainless Steel optional)

Debris Guard

ASTM A569 Carbon Steel (Stainless Steel optional)

Seals

Three-comb, closed-cell foam gaskets

Hardware

Mounting anchors: Stainless Steel when applicable.
Optional removable mullions for multi-panel installation

Finish

Panel: high solids mastic epoxy painted.
Wall frame: high solids mastic epoxy painted

Image Gallery

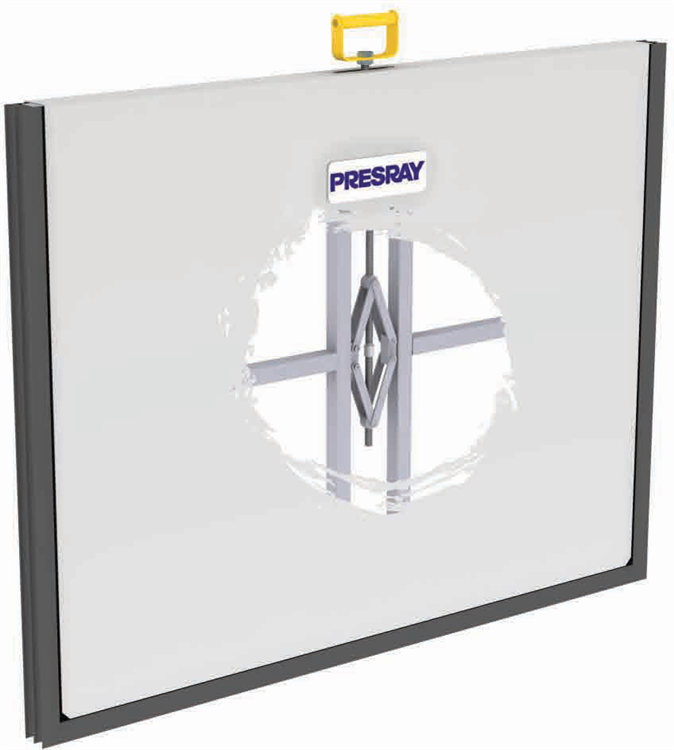

  • FB33 rendering shows the scissor jack that expands the adjustable barrier against a door jamb or mullion.
    FB33 rendering shows the scissor jack that expands the adjustable barrier against a door jamb or mullion.
  • Two FB33s protecting a retail store from flood waters.
    Two FB33s protecting a retail store from flood waters.

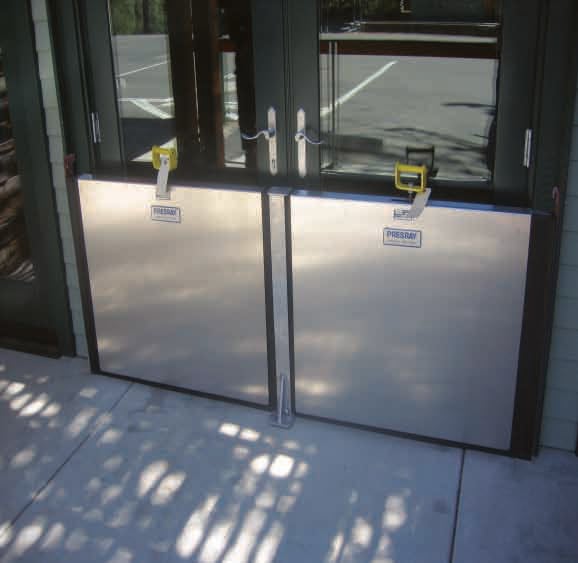

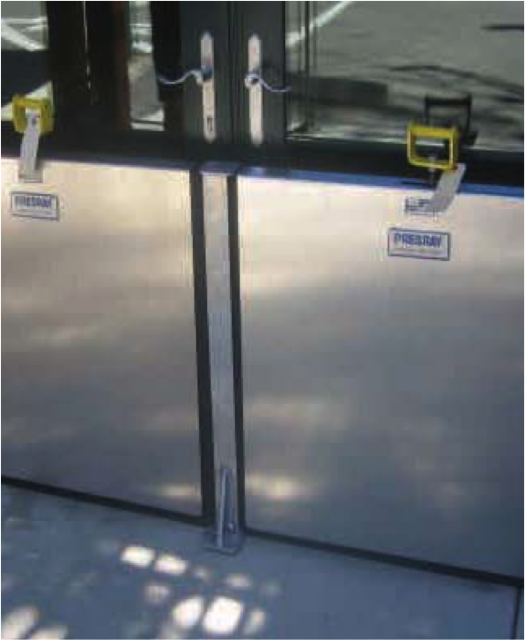

  • Multiple FB33 Barriers can be connected together with Presray mullions.
    Multiple FB33 Barriers can be connected together with Presray mullions.

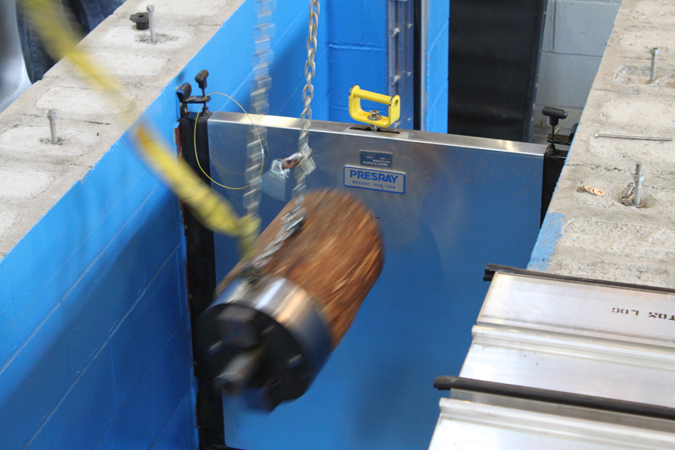

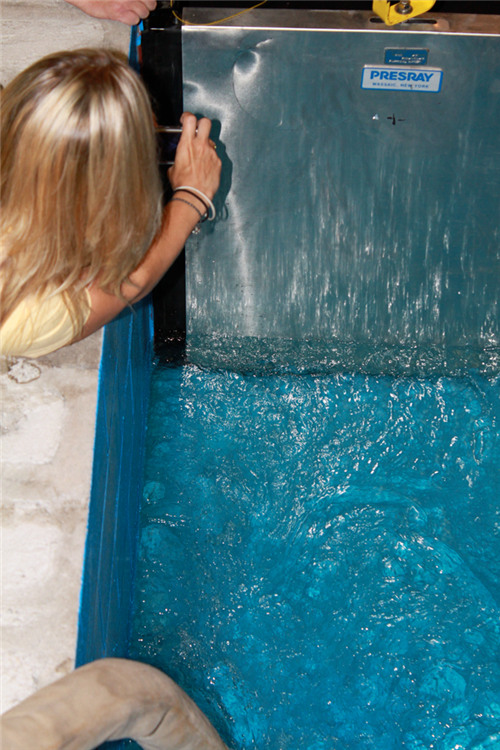

  • FB33 undergoing impact testing by FM Approvals at the Presray Training & Testing Center. The FB33 is
    FB33 undergoing impact testing by FM Approvals at the Presray Training & Testing Center. The FB33 is "FM Approved" for effective and reliable flood mitigation.
  • Checking for damage during impact testing by FM Approvals at the Presray Training & Testing Center. The FB33 is
    Checking for damage during impact testing by FM Approvals at the Presray Training & Testing Center. The FB33 is "FM Approved" for effective and reliable flood mitigation.
