Presray FastLogsPresray FastLogs provide lightweight, cost efficient and reliable flood protection for openings in most buildings. FastLogs are durable and easy to deploy by a single person without any tools.

Compression seals are made of high-density, closed cell neoprene sponge and effectively prevent leakage between logs and between the barrier, wall jambs and floor surface.

Finished Shrouds protect the Jamb Brackets when not in use, and can be painted to match the building’s color scheme to minimize any aesthetic impact.

Various barrier heights can be achieved in 6" increments by simply adding additional logs. The maximum barrier height is a function of the width of the opening.

APPLICATIONS — PRESRAY FASTLOGS AT WORK

Presray FastLogs are perfect for large openings, garage doors, loading docks and other openings that require rapid, easy-to-install protection where very low leakage is acceptable.

The ingenious interlocking design of FastLogs causes water pressure against the barrier to tighten the logs by transferring horizontal water pressure into downward pressure on the compression seals located across the bottom of each log.

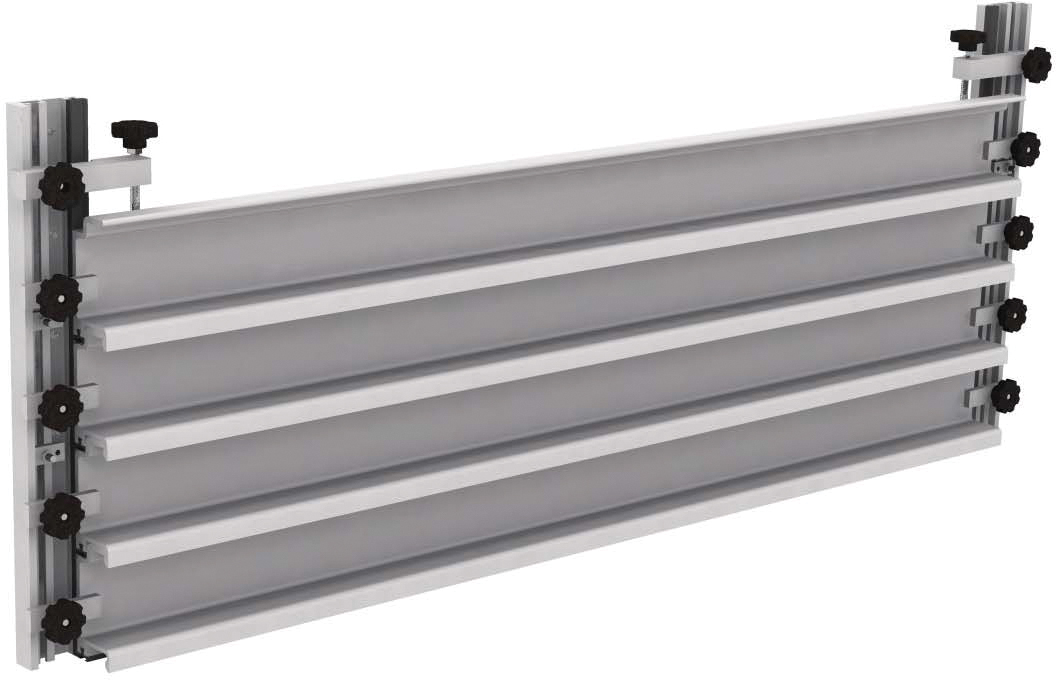

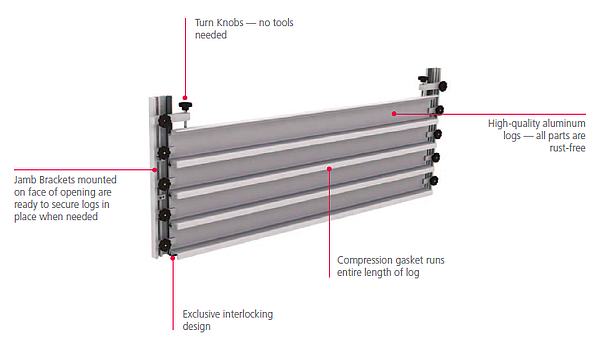

Presray Fastlog Diagram

FastLogs Product Specifications

Logs

Presray AL6061-T6 aluminum channels

Frames

Presray AL6061-T6 Jamb Extrusion
Steel jambs optional for certain conditions

Seal

Presray compression gasket composed of high-density closed cell neoprene sponge with skin, retained in the stop logs and jambs.

Hardware

Presray Compression Brackets; Presray Hold Down Brackets; KN8C Turn Knobs.

Finish

Stop logs mill-finish aluminum; jambs mill-finish aluminum. Steel jambs (if used) primed with one coat rust inhibitive, lead free, red primer.


FastLogs Image Gallery

Photos of FastLogs stackable flood barriers by Presray.

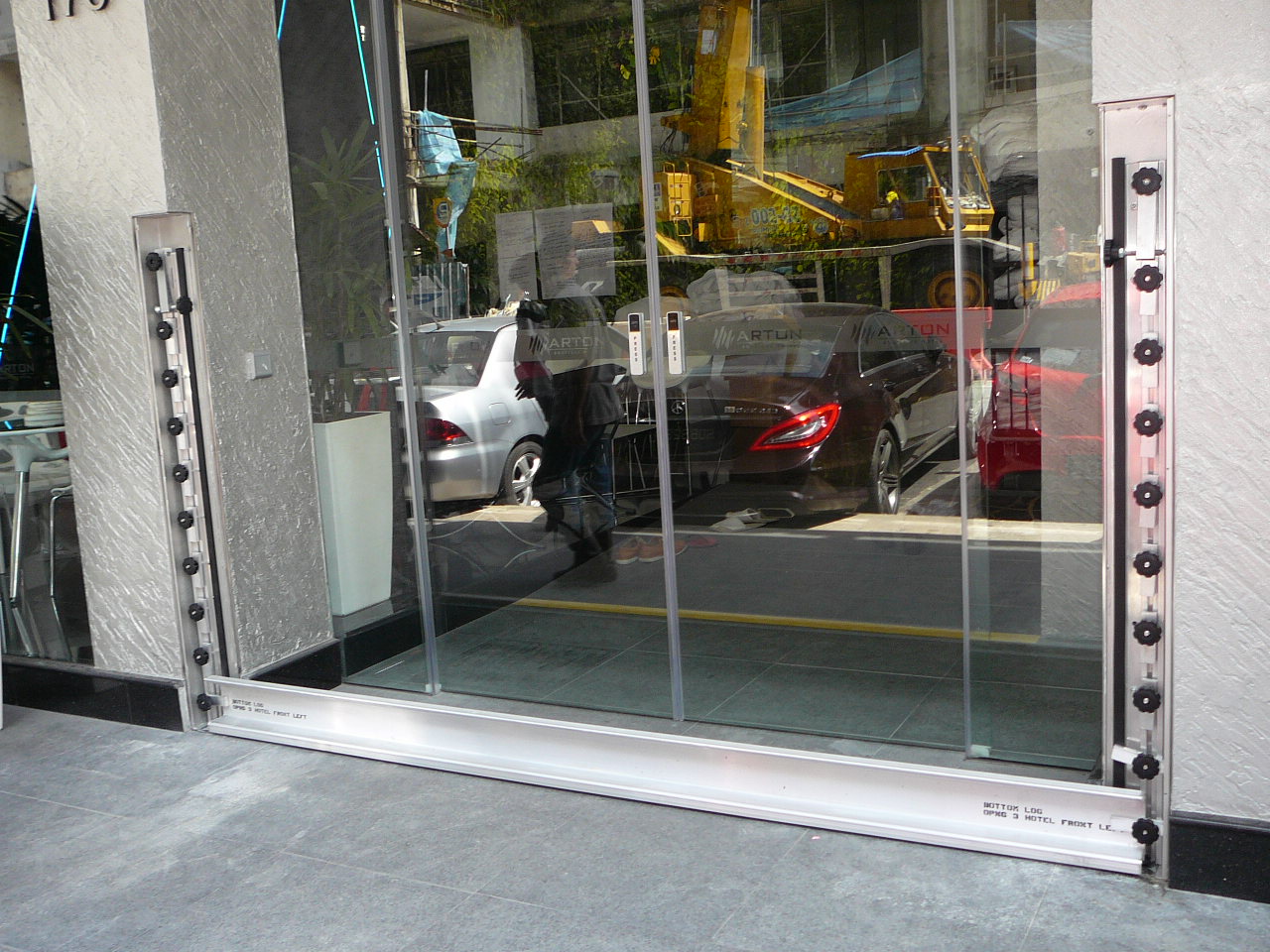

  • FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Pre-deployment.
    FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Pre-deployment.
  • FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Deployment of FastLogs.
    FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Deployment of FastLogs.

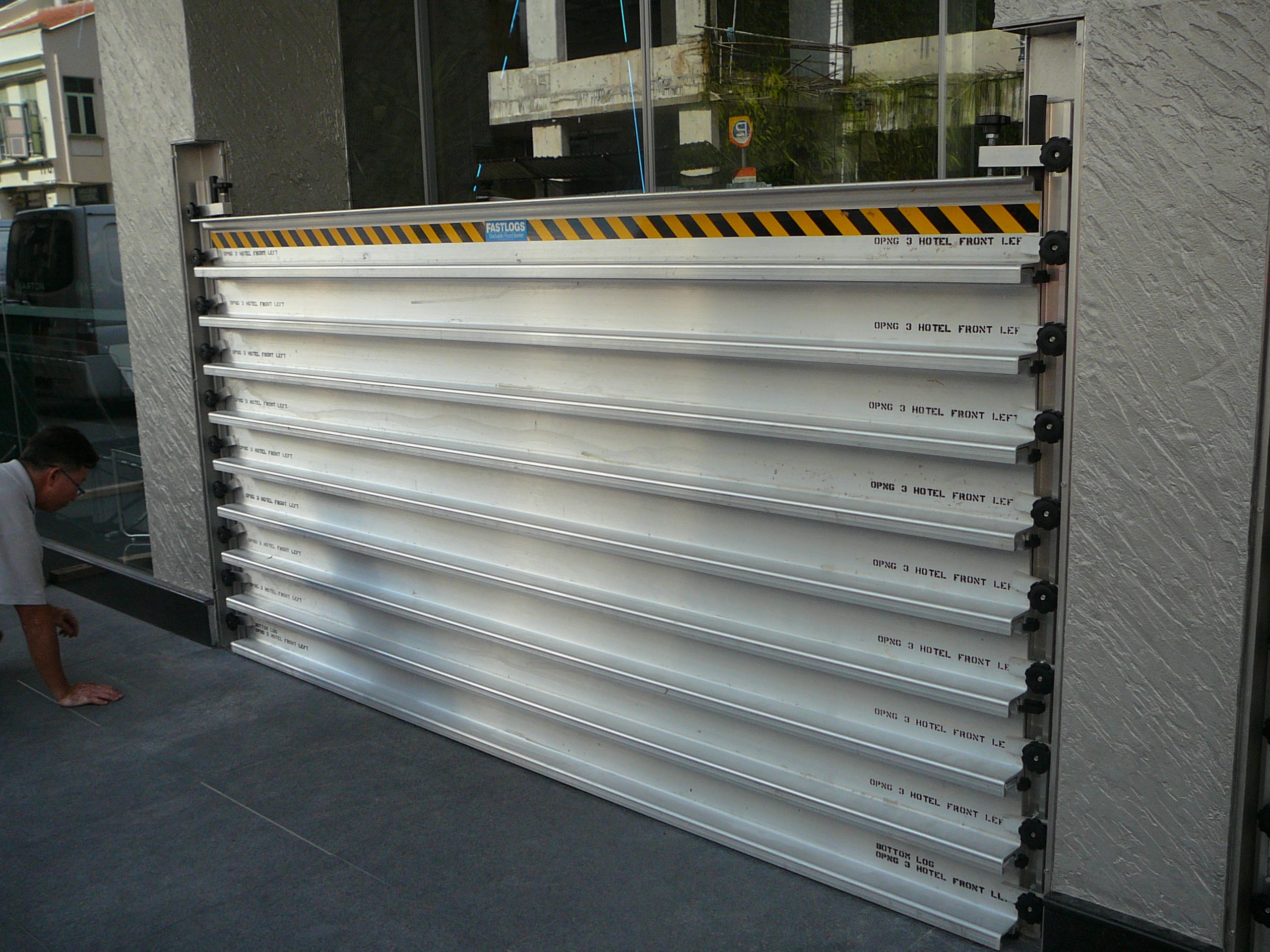

  • FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Fully deployed.
    FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Fully deployed.

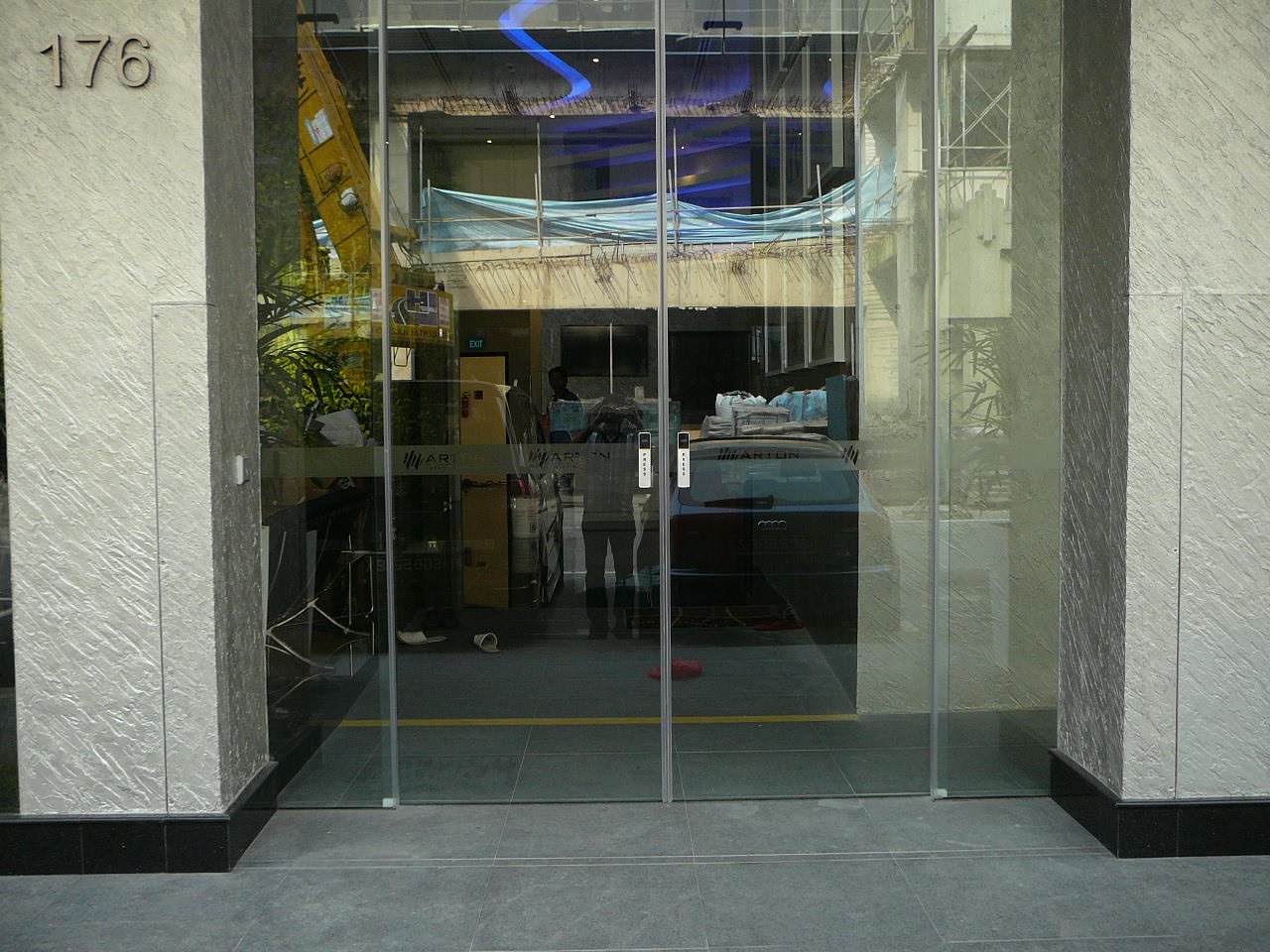

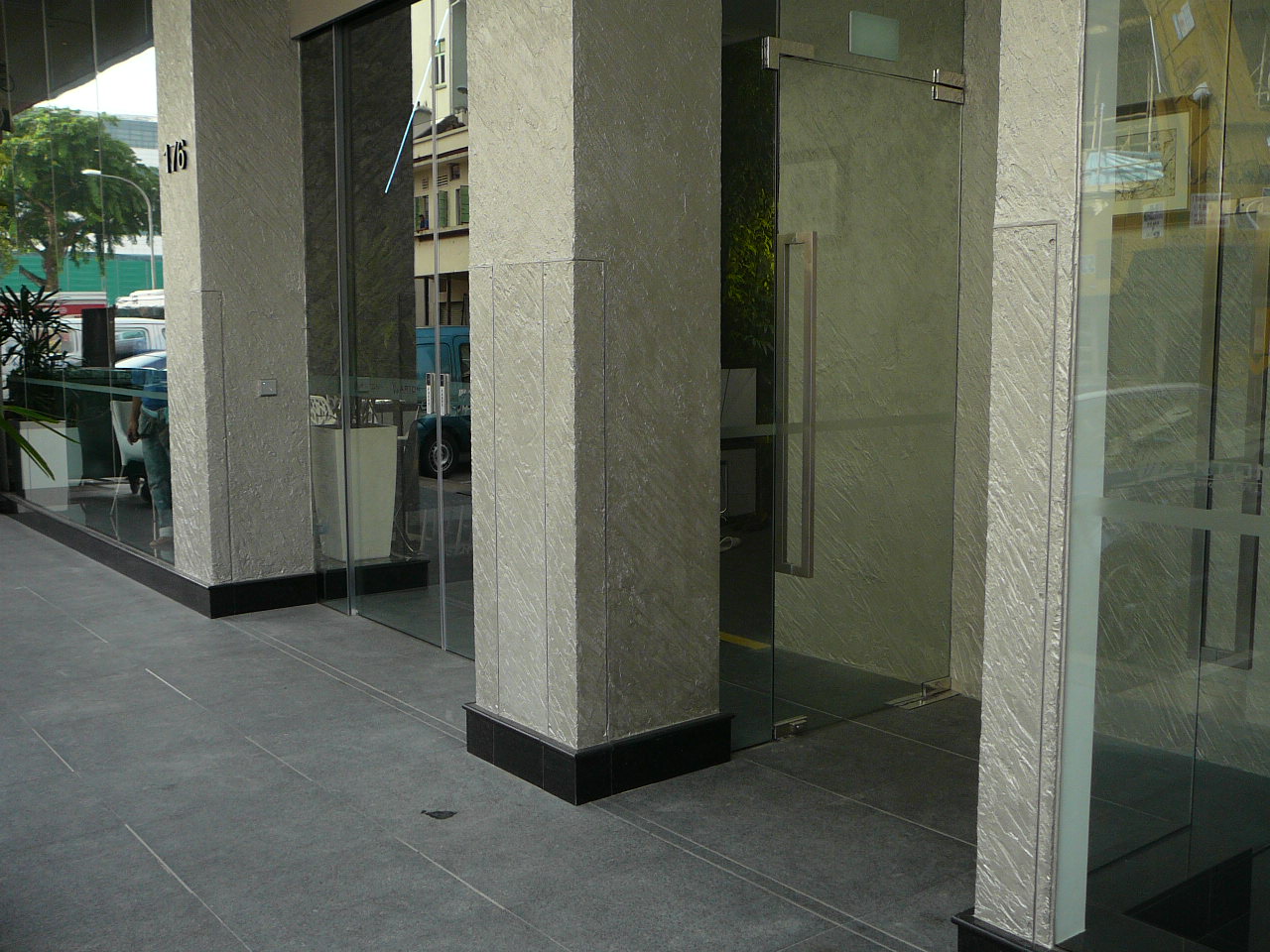

  • FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Double doors before deployment.
    FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Double doors before deployment.

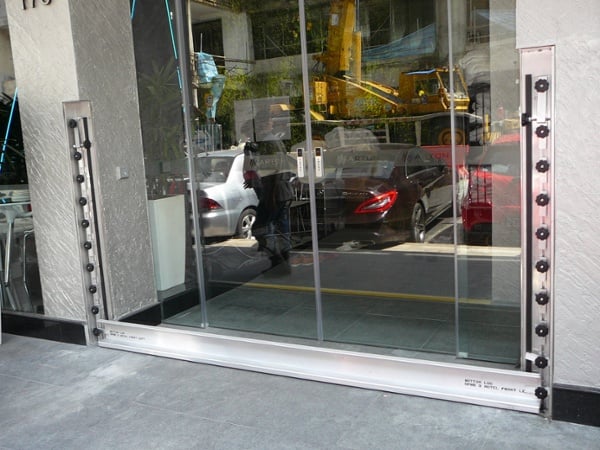

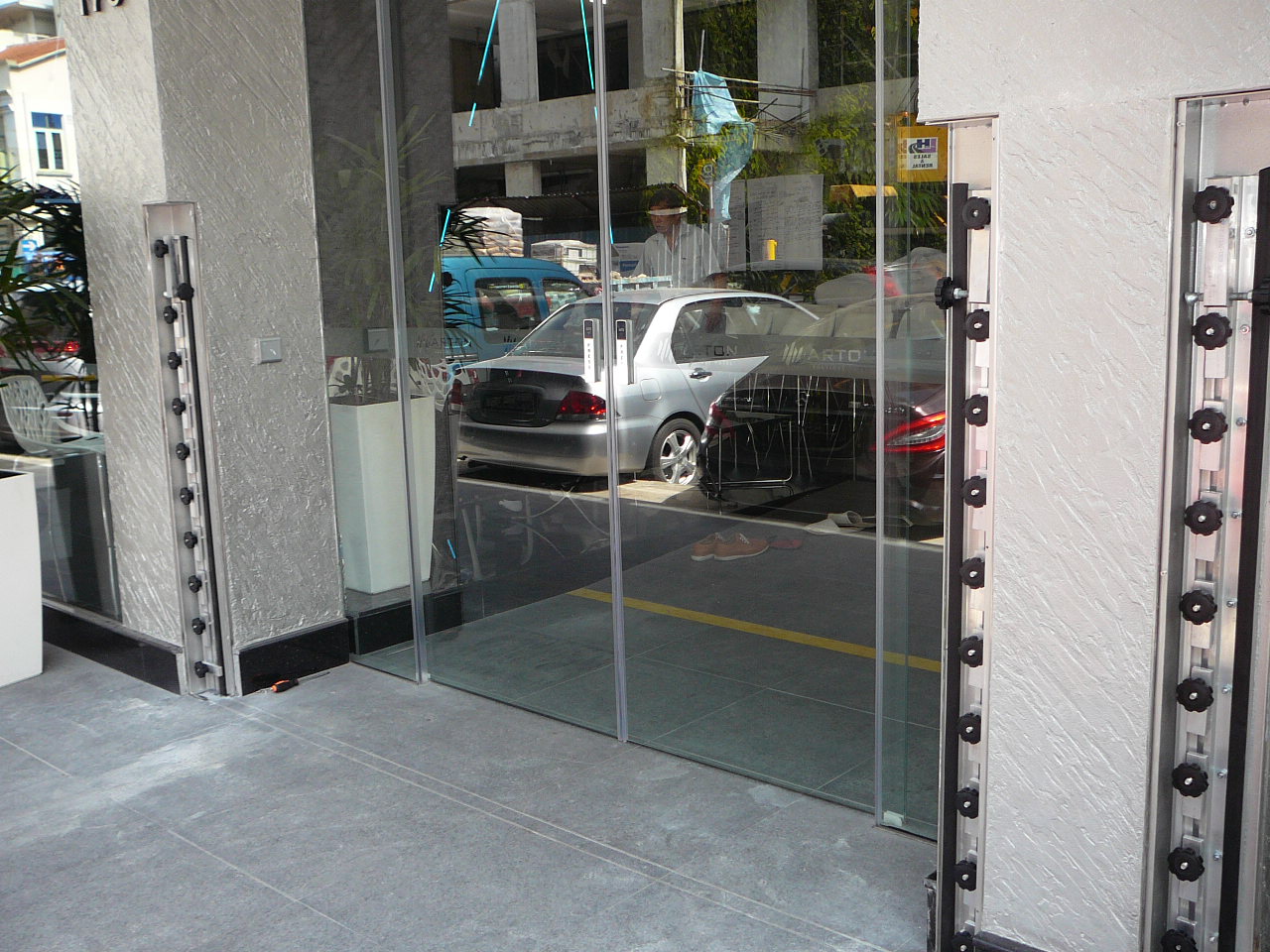

  • FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Opening ready for deployment of FastLogs.
    FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Opening ready for deployment of FastLogs.

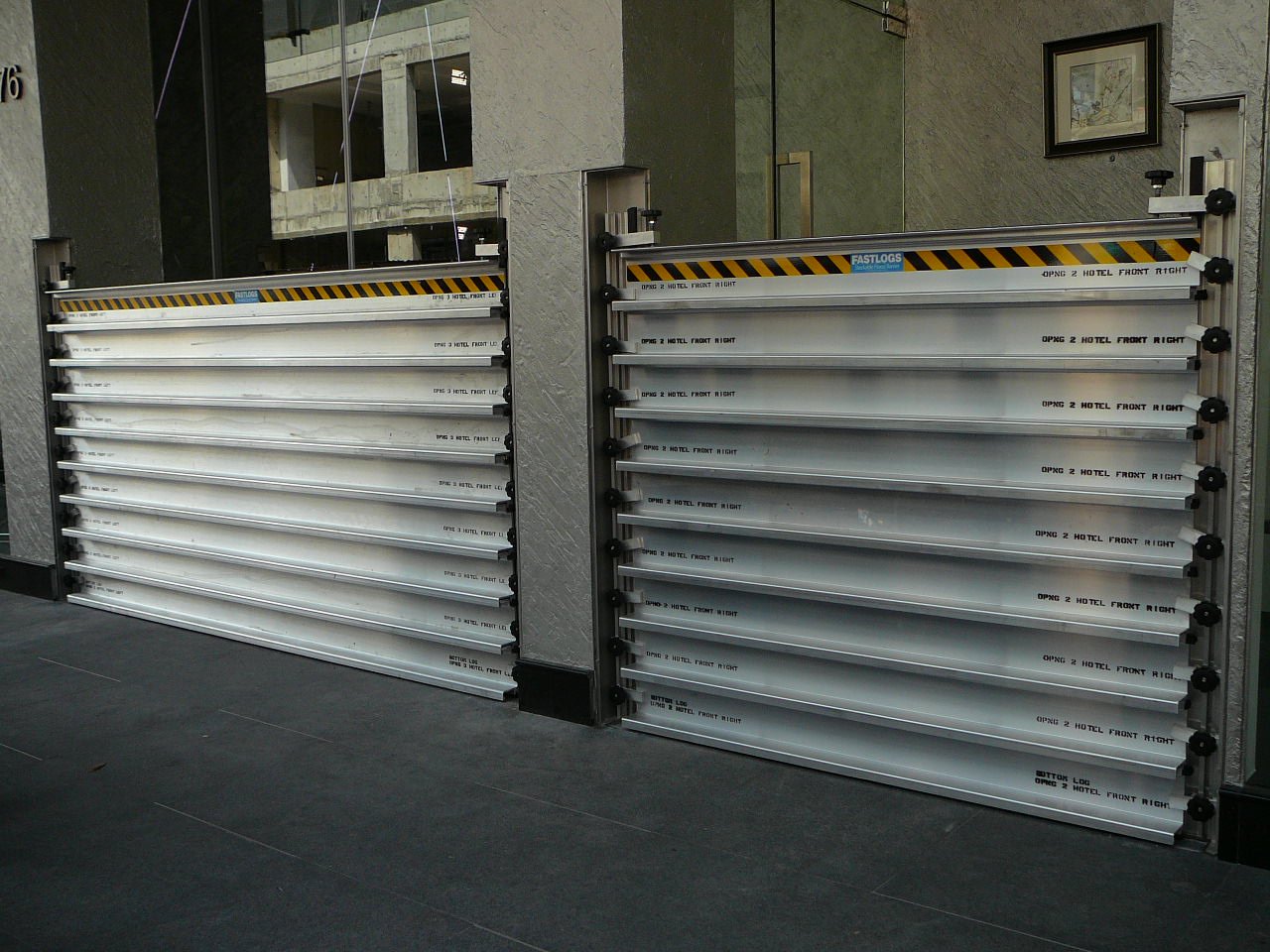

  • FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Deployment of FastLogs in two openings.
    FastLogs installed in new hotel on Tyrwhitt Rd in Singapore. Photo: Deployment of FastLogs in two openings.

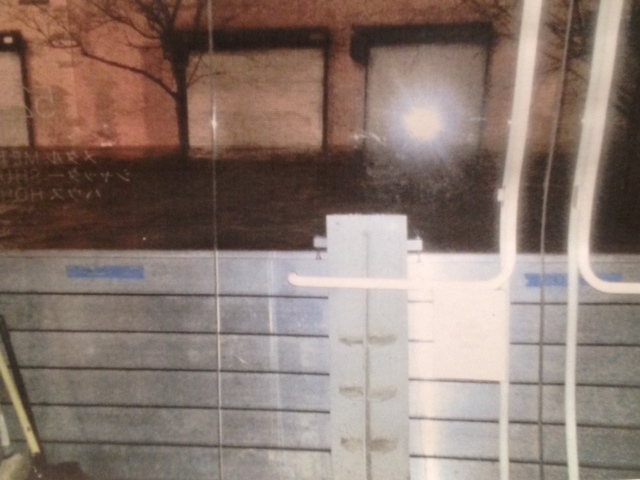

  • FastLogs at work during Hurricane Sandy, Oct 2012
    FastLogs at work during Hurricane Sandy, Oct 2012

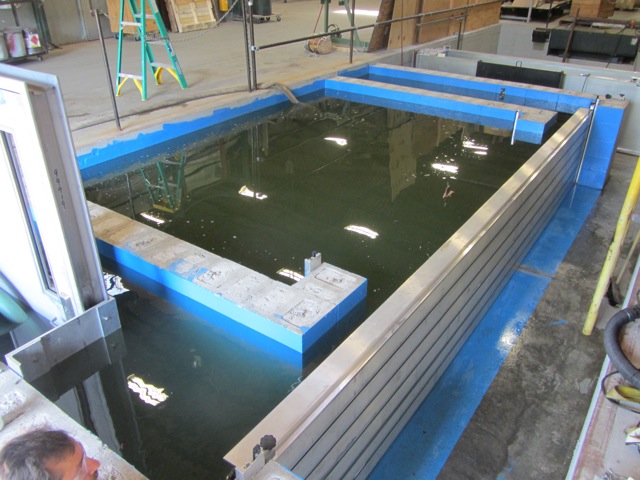

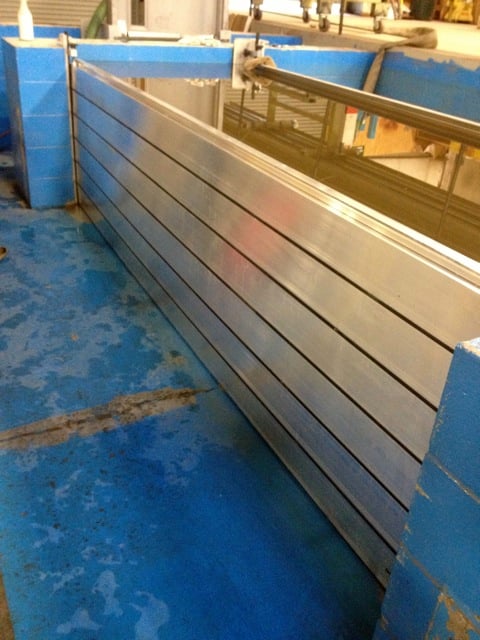

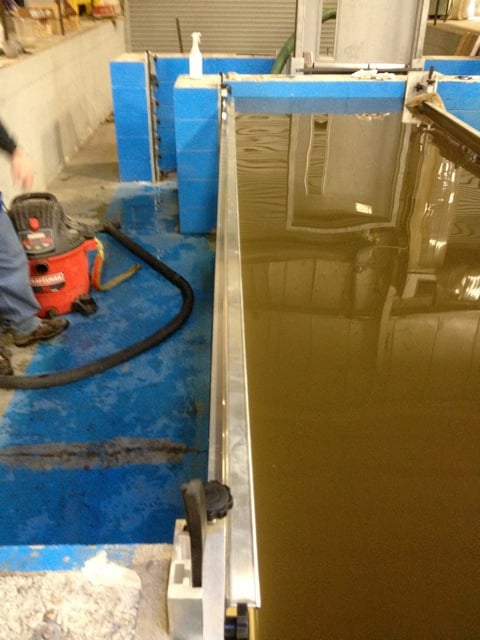

  • FastLogs LD – FM Approvals Testing 02-06-13 at the Presray Testing & Training Center.
    FastLogs LD – FM Approvals Testing 02-06-13 at the Presray Testing & Training Center.
  • FastLogs LD – FM Approvals Testing 02-06-13 at the Presray Testing & Training Cente
    FastLogs LD – FM Approvals Testing 02-06-13 at the Presray Testing & Training Cente

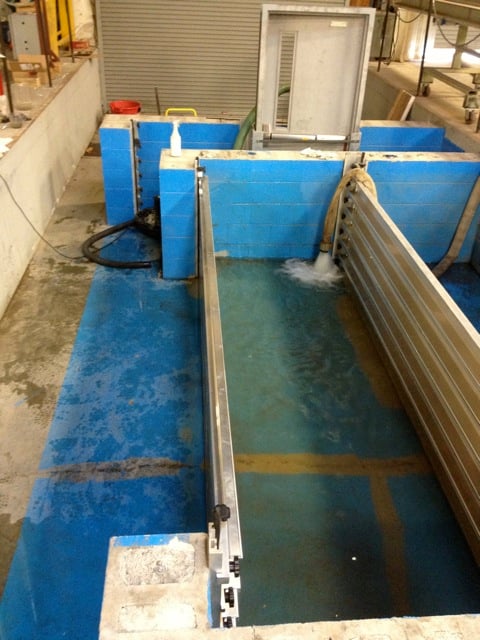

  • FastLogs LD – FM Approvals testing on 02-06-13
    FastLogs LD – FM Approvals testing on 02-06-13
  • Fastlogs LD testing by FM Approvals at the Presray Testing and Training Center, in Wassaic, NY USA.
    Fastlogs LD testing by FM Approvals at the Presray Testing and Training Center, in Wassaic, NY USA.

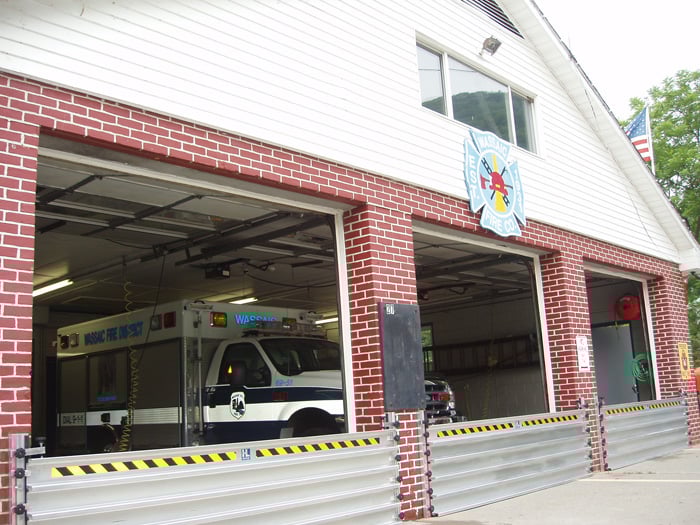

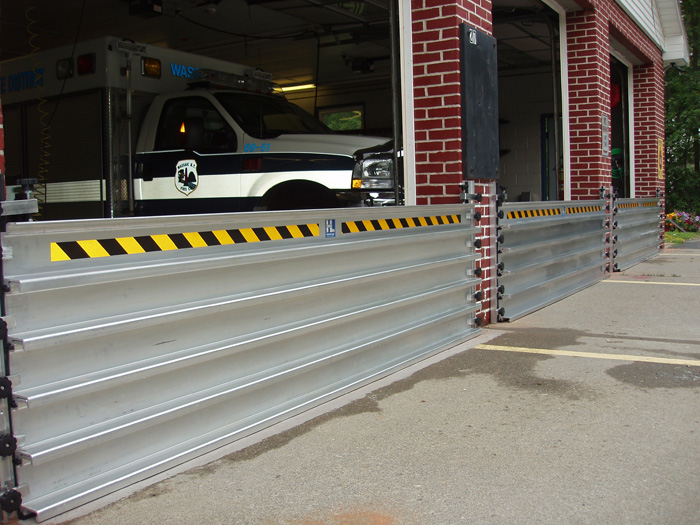

  • FastLogs deployed at the Wassaic, NY Firehouse.
    FastLogs deployed at the Wassaic, NY Firehouse.
  • FastLogs deployed at the Wassaic, NY Firehouse.
    FastLogs deployed at the Wassaic, NY Firehouse.

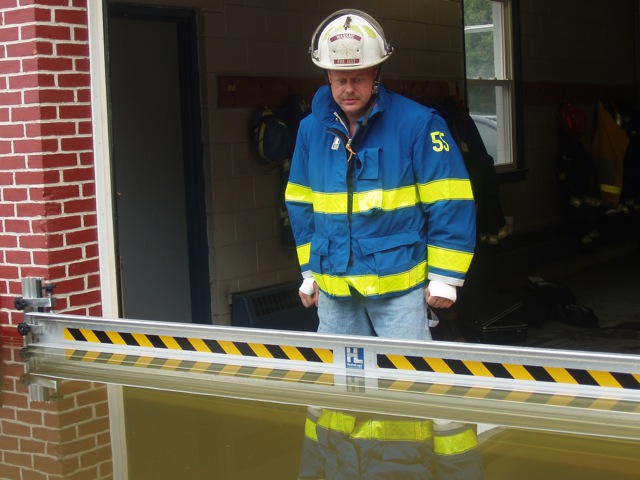

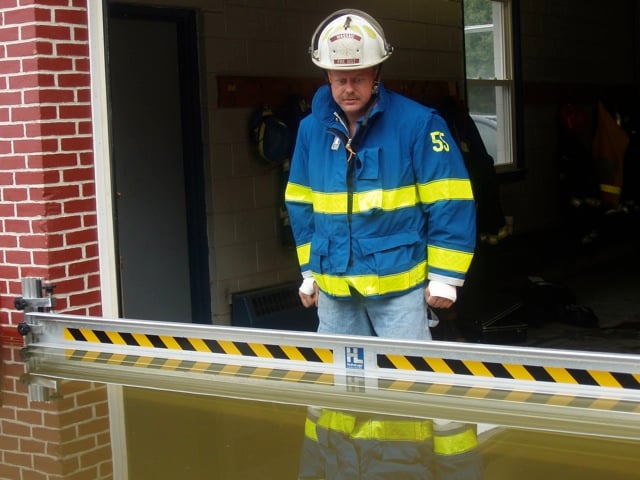

  • FastLogs deployed at Wassaic, NY firehouse – water at maximum level with virtually no leakage.
    FastLogs deployed at Wassaic, NY firehouse – water at maximum level with virtually no leakage.

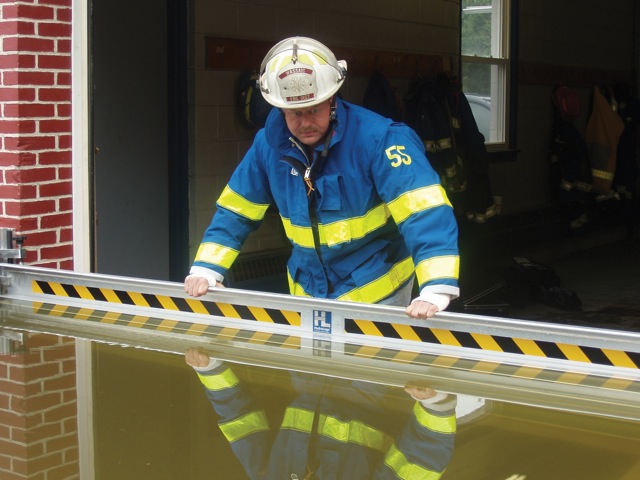

  • FastLogs deployed at Wassaic, NY firehouse – water at maximum level with virtually no leakage.
    FastLogs deployed at Wassaic, NY firehouse – water at maximum level with virtually no leakage.
