FB77 Side-Hinged Flash Flood Doors

Download Center:

Fact Sheet

3-Part CSI Specs

Drawings:

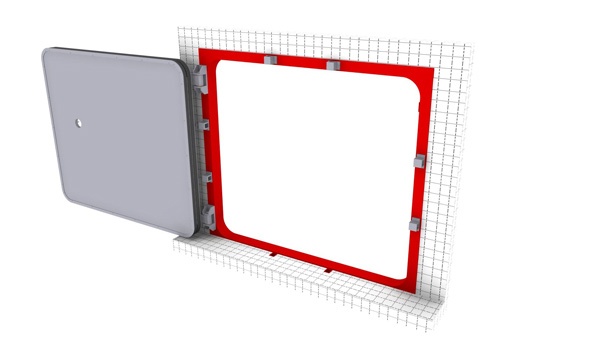

FB77 flash flood doors

These heavy-duty flash flood doors are ideal for building openings, mechanical rooms, passageways and tunnels where a flush threshold and a full perimeter seal is required.

When floodwaters begin to rise, the FB77 is simply swung into place. Side bolts hold the door in place and dual pneumatic seals provide redundant protection on all four sides of the door.

Every FB77 is custom built to exacting dimensions for new or existing construction.

COMPLETE FLASH FLOOD PROTECTION IN A MOMENTS NOTICE

For fast, maximum flood protection of passageways and similar applications, the FB77 Flash Flood Doors are the ideal solution. Hinged panels glide effortlessly into place and dual pneumatic seals are easily and quickly inflated to fully seal the opening.

APPLICATIONS — THE FB77 FLASH FLOOD DOORS AT WORK

The FB77 is perfect for utilities, nuclear power plants and industrial tunnels and passageways that must be fully sealed during a high-water and flash flood events. If valuable equipment or infrastructure is exposed in the event of flooding, the FB77’s hinged gate and pneumatic seals will provide efficient and superior protection from flood waters.

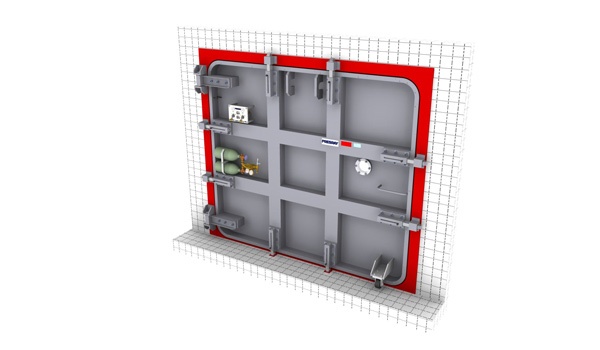

fb77 flash flood doors

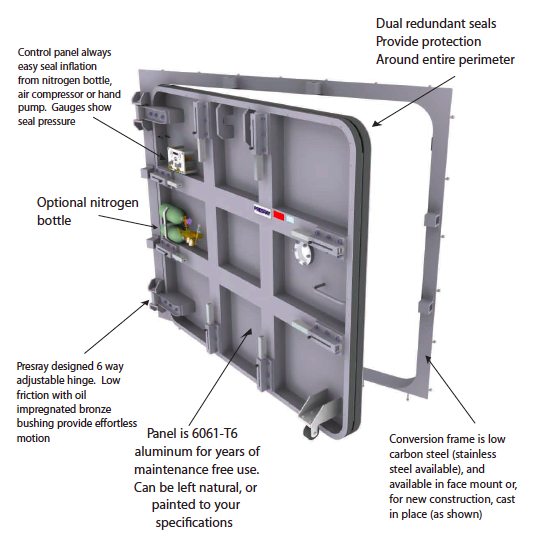

FB77 Product Specifications

Size

Custom built to match protection requirements

Panel

6061-T6 Aluminum plate

Conversion Frame

Low-carbon steel (stainless steel optional)

Seals

Presray pneumatic-seal technology

Hardware

Hinges: Presray 6-way adjustable hinges for panels over 24 sq. ft. heavy-duty low friction hinges for panels 24 sq. ft. and under.

Latches: Slide bolts to hold panel in closed position

Finish

Bright aluminum finish for panel. Conversion frame primed.

Image Gallery

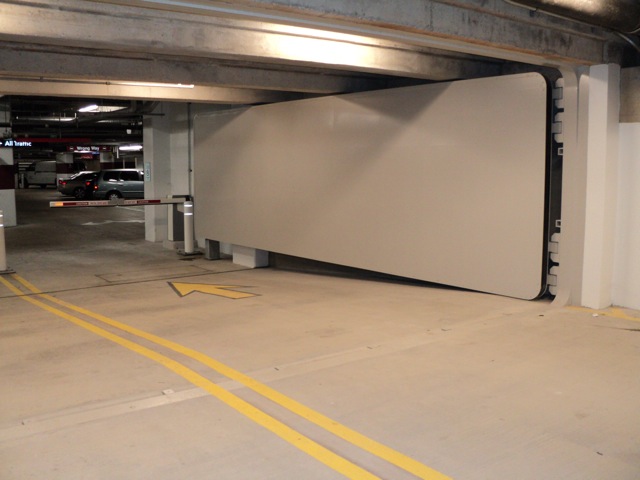

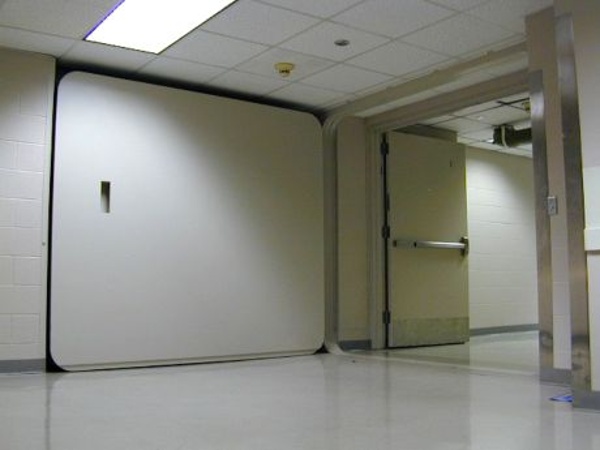

  • FB77 – In parking garage, open position.
    FB77 – In parking garage, open position.

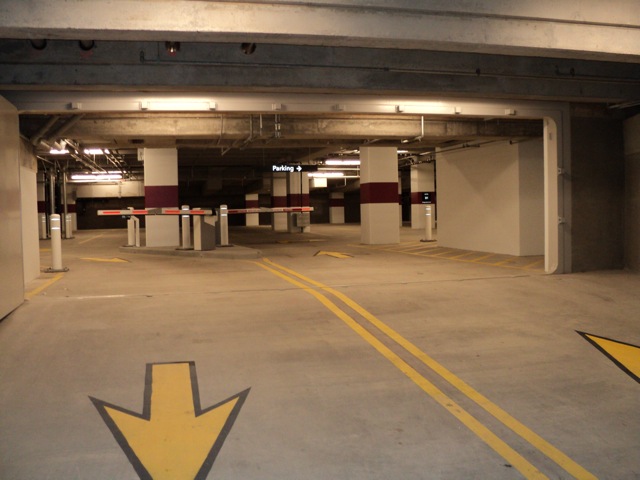

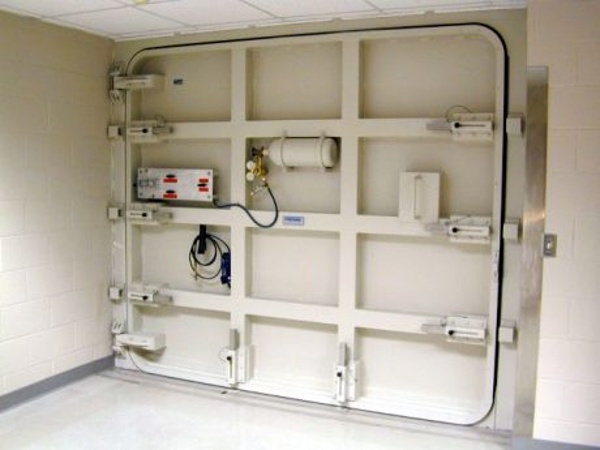

  • FB77 – In parking garage, open position.
    FB77 – In parking garage, open position.

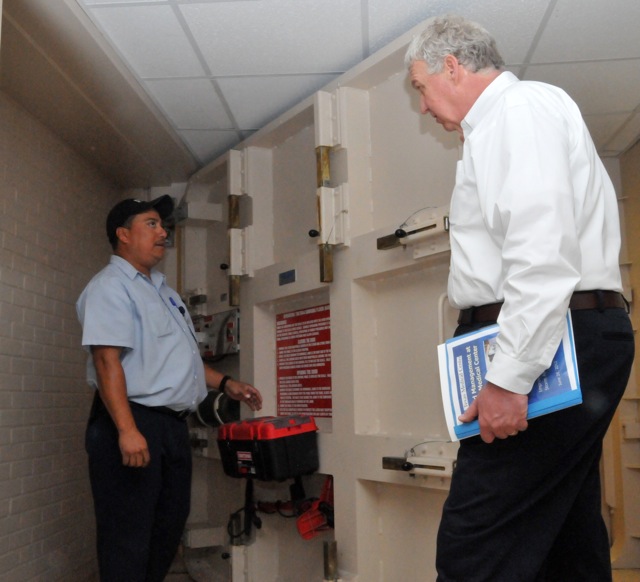

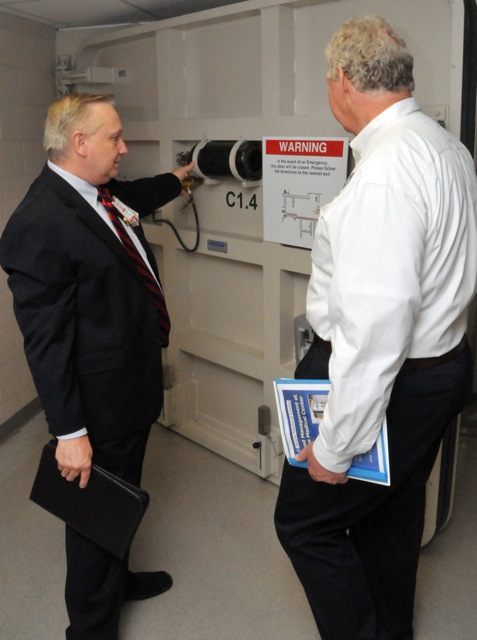

  • Bert Gumeringer, Dir. of Facilities / Operations and Security at Texas Children's Hospital, show's FEMA Dep. Administrator Rich Serino the operations of a Presray FB77
    Bert Gumeringer, Dir. of Facilities / Operations and Security at Texas Children's Hospital, show's FEMA Dep. Administrator Rich Serino the operations of a Presray FB77 "submarine" door in the tunnel system under the Texas Medical Center. Source: FEMA / Earl Armstrong 2012.
  • FEMA Dep. Administrator Rich Serino is shown how a Presray FB77 Flood Door, or
    FEMA Dep. Administrator Rich Serino is shown how a Presray FB77 Flood Door, or "submarine door," can be closed to prevent flooding of the tunnel complex under the Texas Medical Center. Source: FEMA / Earl Armstrong 2012
