D3HA Watertight Hatch

Download Center:

Fact Sheet

3-Part CSI Specs

Drawings:

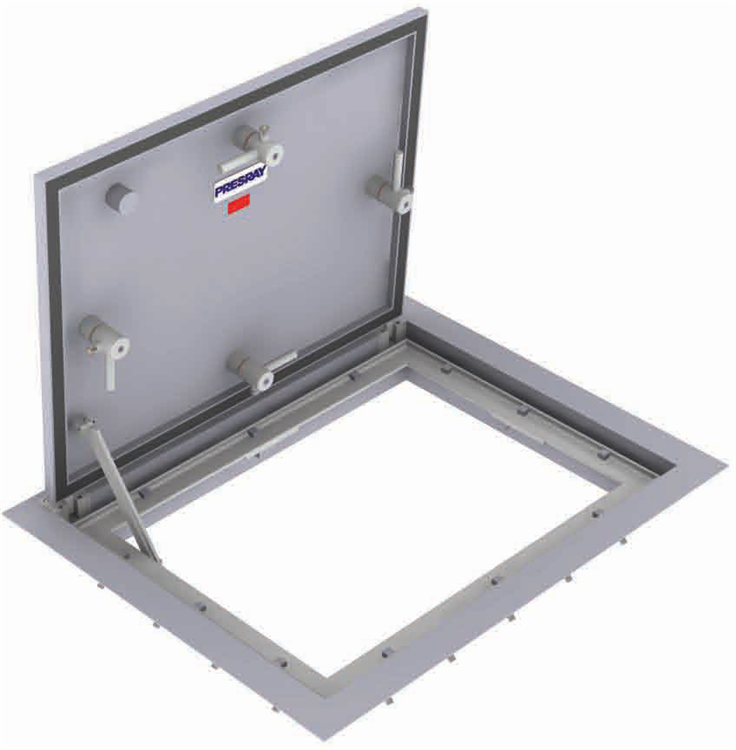

D3HA watertight hatchThis heavy-duty watertight hatch is designed for openings that are infrequently used and need to be sealed quickly and easily in the event of flooding.

Because these hatches are engineered with a mechanical seal, no air pressure or power is needed and maintenance requirements are minimal.

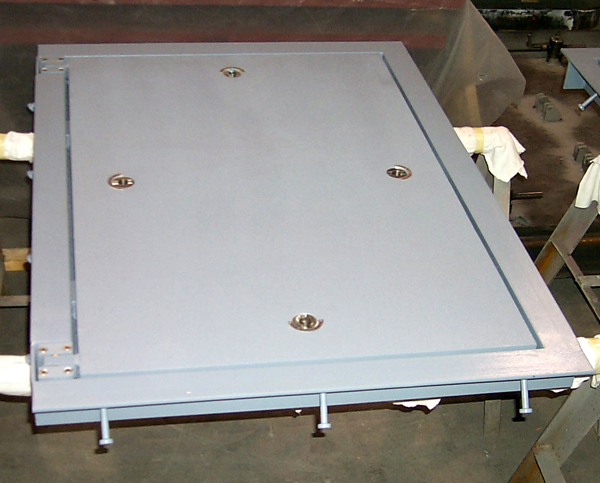

To avoid interference with personnel, equipment and vehicles, the D3HA is available in a fully flush design.

APPLICATIONS - THE D3HA AT WORK

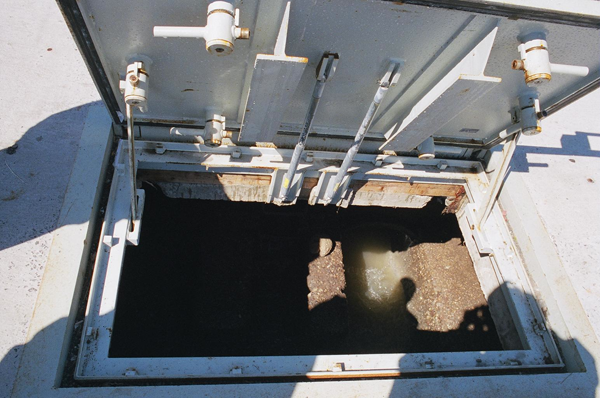

The D3HA watertight hatch is ideal for water treatment facilities, sewage treatments plants and pumping stations.  They are great for mechanical and equipment spaces that must be kept dry in case of flooding. These hatches will be ready when you need them because they are virtually maintenance free.

FLOOD PROTECTION IN SECONDS

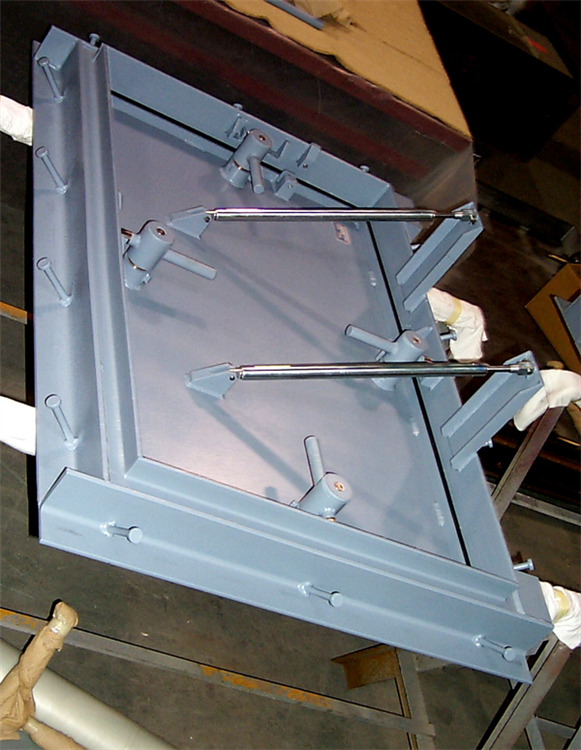

The opening size dictates the number of handles/dogs, which are evenly spaced with stainless steel rollers to all evenly distribute the loads on the gasket compression.  The dogs are provided with an "o" ring seal and two oil-impregnated bronze flange bearings to maintain shaft alignment.  When not in the closed position, the dogs are held in place by disk springs.  Each dog has a mechanism to adjust seal compression after installation.

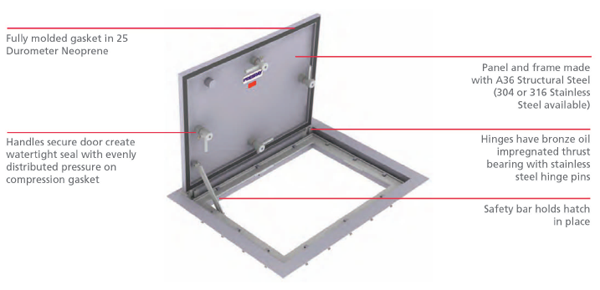

D3HA watertight hatch diagram

D3HA Product Specifications

Size

Custom built to any dimensions

Seal

Type 25 Durometer fully-molded neoprene gasket

Panel

A36 Carbon Steel

Frame

A36 Carbon Steel

Hinges

Bronze oil-impregnated thrust bearing with stainless steel hinge pins

Handles

Evenly spaced dogs with stainless steel rollers

Finish

Blast cleaned per SSPC-SP7 and primed with one coat red primer
